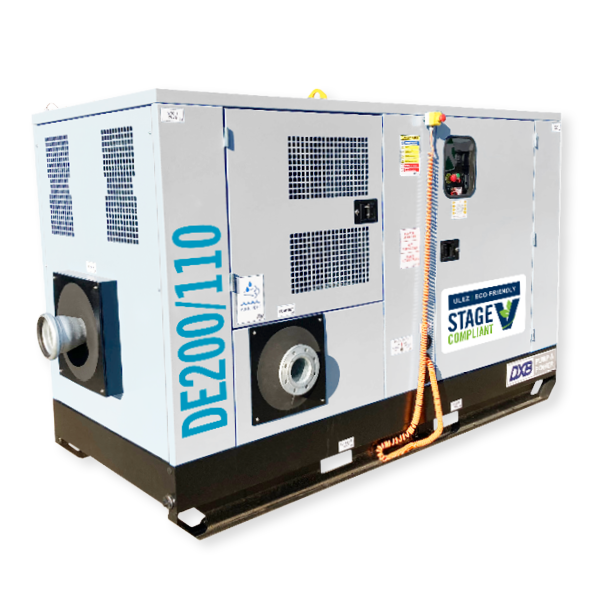

DE200/110

FLOW @ BEP

196 m³/hr
863 usgpm

HEAD @ BEP

111 metres
364 ‘

SPEED @ BEP

2200 rpm

EFFICIENCY @ BEP

71%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

150 mm

6 "

Discharge Size

80 mm

3 "

Solids Handling

76 mm (min)

3 " (min)

Max Flow

233 m³/hr

1026 usgpm

Max Head

123 metres

404 '

Max Speed

2200 rpm

2200 rpm

Net Weight

2350 kgs

5180 lbs

L × W × H

2.85 × 1.20 × 2.00 metres

112 × 47 × 78 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

CONSTRUCTION & TUNNELLING

INDUSTRIAL

Mining, Quarry & Aggregates

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

11 litres/hr (2.90 usgph)

Rated Power @ BEP

36 kW (49 hp)

Model

Deutz TCD3.6L4

Emissions

EU Stage V

Max Power

105 kW (141 hp)

ELECTRIC MOTOR SPECS

Model

WEG / ABB 415V 3 phase 60Hz

Standard IEC3
Rated Power

110 kW (148 hp)

Enclosure TEFC
Nominal Speed

1800 rpm

Frame

315

PUMP SPECIFICATION

Model

CRP80HC387

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Six Vane, CA6NM Enclosed Clear Liquids Impeller design providing long life & optimal efficiency

Size: 387 mm (15.00 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

PERFORMANCE CURVE

10.73 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (233 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
