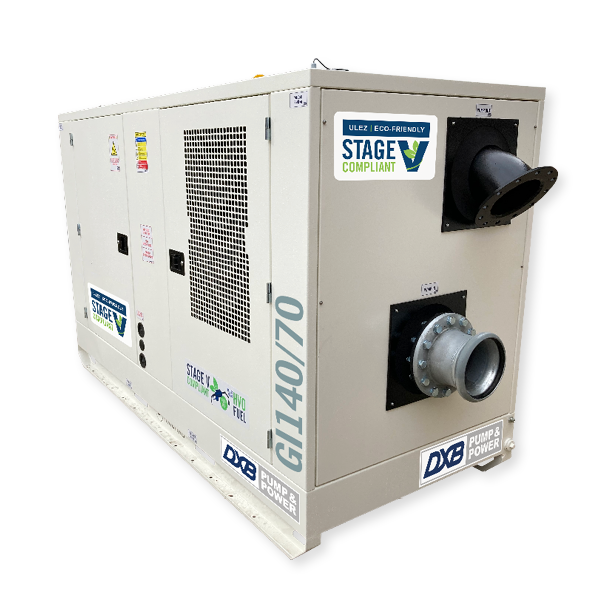

GI140/70

FLOW @ BEP

150 m³/hr
670 usgpm

HEAD @ BEP

71 metres
233 ‘

SPEED @ BEP

1800 rpm

EFFICIENCY @ BEP

72%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

150 mm

6 "

Discharge Size

80 mm

3 "

Solids Handling

13 mm (min)

0.50 " (min)

Max Flow

190 m³/hr

840 usgpm

Max Head

77 metres

253 '

Max Speed

1800 rpm

1800 rpm

Net Weight

2350 kgs

5180 lbs

L × W × H

2.85 × 1.20 × 2.00 metres

112 × 47 × 78 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

INDUSTRIAL

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

12 litres/hr (3.20 usgph)

Rated Power @ BEP

41 kW (55 hp)

Model

Deutz TD2.9

Emissions

EU Stage V

Max Power

55 kW (74 hp)

ELECTRIC MOTOR SPECS

Model WEG / ABB 415V 3 phase 50Hz
Standard IEC3
Rated Power

55 kW (74 hp)

Enclosure TEFC
Nominal Speed 1500 rpm
Frame

250

PUMP SPECIFICATION

Model

CRP80HC376

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Six Vane, CA6NM Enclosed Clear Liquids Impeller design providing long life & optimal efficiency

Size: 376 mm (14.80 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

PERFORMANCE CURVE

13.25 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (190 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
