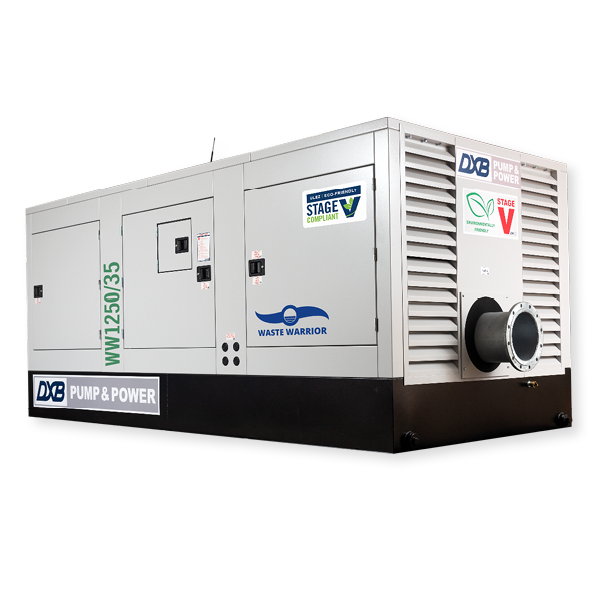

WW1250/35

FLOW @ BEP

1180 m³/hr
5190 usgpm

HEAD @ BEP

37 metres
121 ‘

SPEED @ BEP

1200 rpm

EFFICIENCY @ BEP

77%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

300 mm

12 "

Discharge Size

300 mm

12 "

Solids Handling

121 mm (min)

4.75 " (min)

Max Flow

1480 m³/hr

6500 usgpm

Max Head

56 metres

184 '

Max Speed

1200 rpm

1200 rpm

Net Weight

9200 kgs

20280 lbs

L × W × H

4.00 × 1.50 × 2.50 metres

157 × 59 × 98 "

BEST SUITED FOR THESE MARKETS:

WATER MANAGEMENT

INDUSTRIAL

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

46 litres/hr (12.15 usgph)

Rated Power @ BEP

155 kW (208 hp)

Model

Deutz TCD6.1L4

Emissions

EU Stage V

Max Power

180 kW (241 hp)

ELECTRIC MOTOR SPECS

Model WEG / ABB 415V 3 phase 50Hz
Standard IEC3
Rated Power

185 kW (248 hp)

Enclosure TEFC
Nominal Speed 1500 rpm
Frame

315

PUMP SPECIFICATION

Model

CRP300NNW495

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Two Vane, WasteWarrior unique cutting impeller design for ragging conditions

Size: 495 mm (19 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

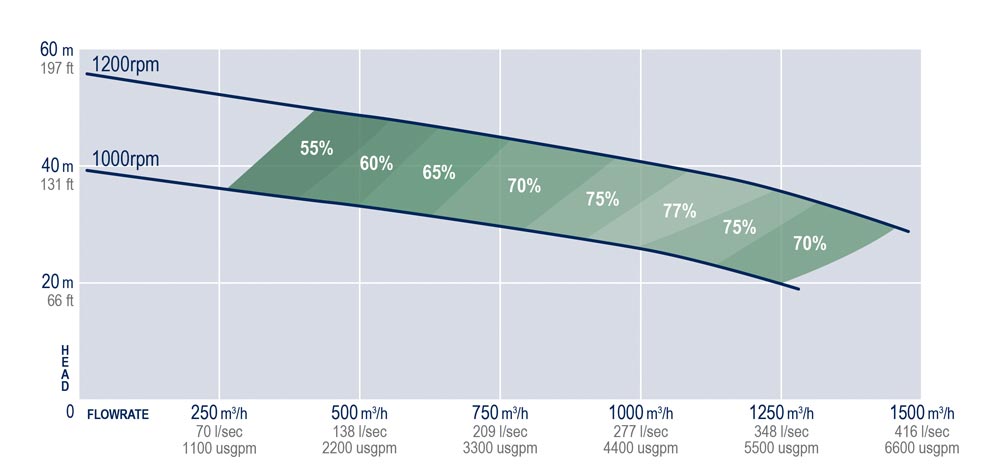

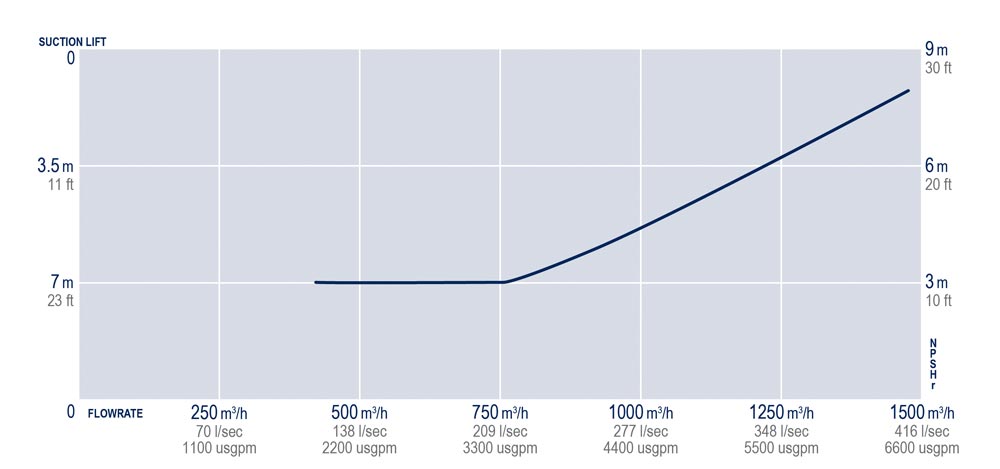

PERFORMANCE CURVE

1.70 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (1480 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
