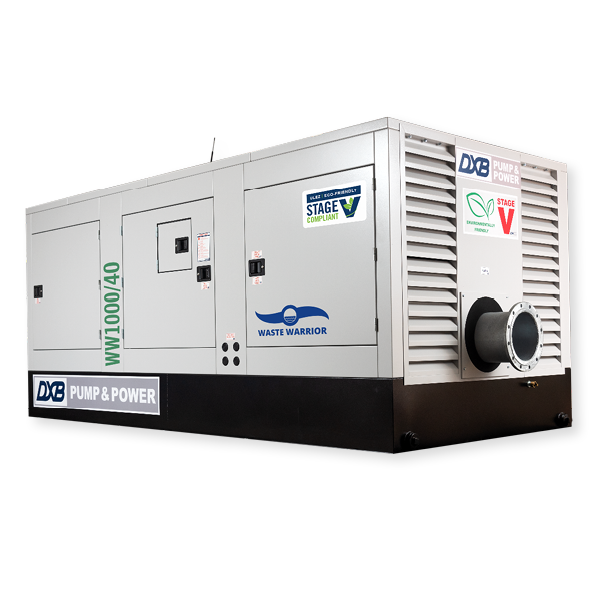

WW1000/40
FLOW @ BEP
4660 usgpm
HEAD @ BEP
136 ‘
SPEED @ BEP
EFFICIENCY @ BEP
FEATURES & BENEFITS
- Auto Start/Stop
- Telemetry
- Fuel Active System
- Solar Panel Charger
- LED Service Lights
- RIGSAFE Shutdown Valve
- Indefinite Dry-Run
- Cycloseal – advanced mechanical seal
- ATEX spark arrestor*
AT A GLANCE
| Suction Size | 250 mm | 10 " |
| Discharge Size | 250 mm | 10 " |
| Solids Handling | 86 mm (min) | 3.40 " (min) |
| Max Flow | 1350 m³/hr | 5940 usgpm |
| Max Head | 57 metres | 188 ' |
| Max Speed | 1600 rpm | 1600 rpm |
| Net Weight | 4100 kgs | 9040 lbs |
| L × W × H | 4.25 × 1.60 × 2.20 metres | 167 × 63 × 87 " |
BEST SUITED FOR THESE MARKETS:
WATER MANAGEMENT
INDUSTRIAL
PUMP
HIRE
CHOOSE DIESEL OR ELECTRIC
DIESEL ENGINE SPECS
| Fuel Tank Size | 450 ltrs (119 usg) |
| Fuel Burn/hr @ BEP | 51 litres/hr (13.50 usgph) |
| Rated Power @ BEP | 171 kW (229 hp) |
| Model | Deutz TCD7.8L6 |
| Emissions | EU Stage V |
| Max Power | 260 kW (348 hp) |
ELECTRIC MOTOR SPECS
| Model | WEG / ABB 415V 3 phase 50Hz |
| Standard | IEC3 |
| Rated Power | 250 kW (335 hp) |
| Enclosure | TEFC |
| Nominal Speed | 1500 rpm |
| Frame | 315 |
PUMP SPECIFICATION
Model | CRP250NNW394 |
Priming System | Type: Cornell liquid tolerant diaphragm vacuum pump Air Removal Capability: 50 cfm Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper Run Dry: Indefinite capability |
Impeller | Type: Two Vane, WasteWarrior unique cutting impeller design for ragging conditions Size: 394 mm (15.50 ″) |
Volute | Heavy duty GG30 Gray Iron with 125# flanges |
Mechanical Seal | Tungsten Carbide v Silicon Carbide |
Bearing & Shaft | Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft |

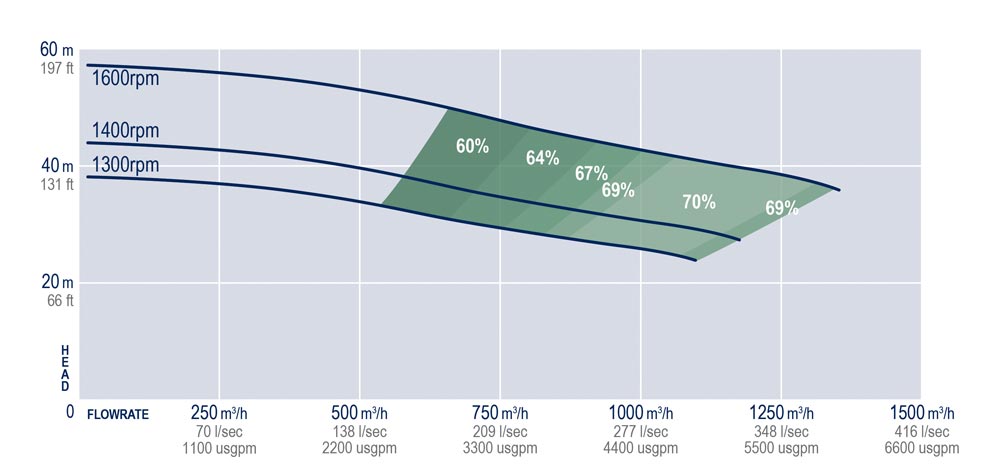

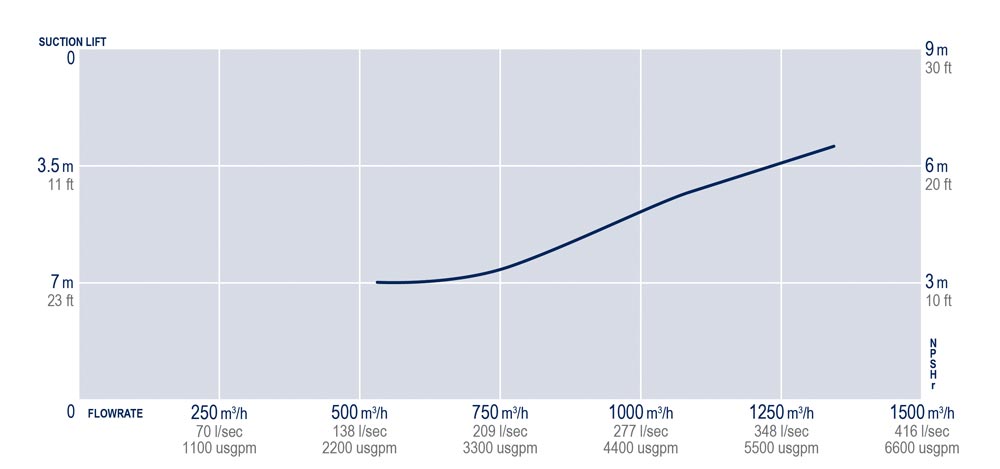

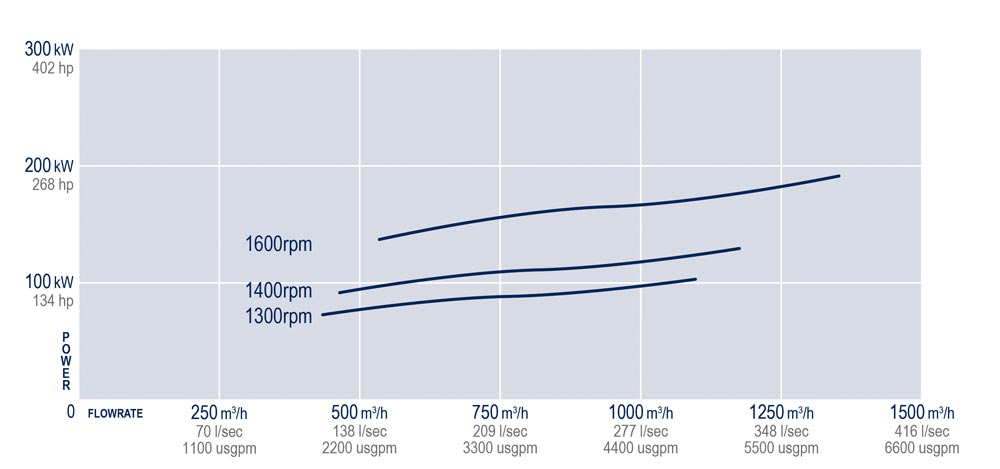

PERFORMANCE CURVE
