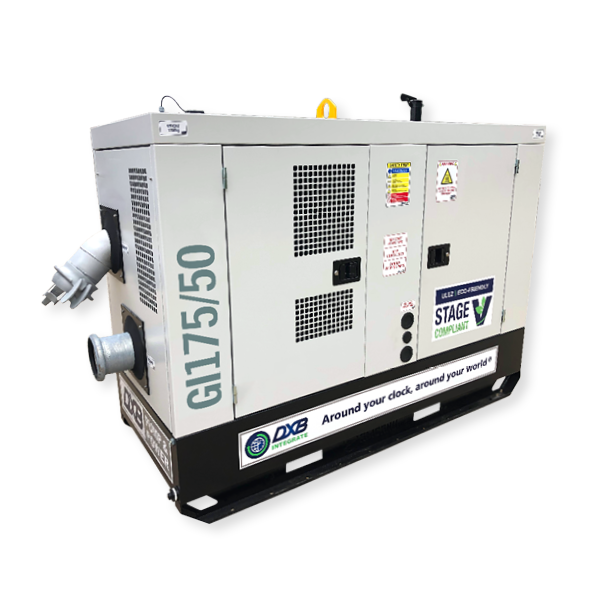

GI175/50

FLOW @ BEP

180 m³/hr
790 usgpm

HEAD @ BEP

156 metres
512 ‘

SPEED @ BEP

2200 rpm

EFFICIENCY @ BEP

62%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

150 mm

6 "

Discharge Size

80 mm

3 "

Solids Handling

19 mm (min)

0.75 " (min)

Max Flow

270 m³/hr

1200 usgpm

Max Head

168 metres

512 '

Max Speed

2200 rpm

2200 rpm

Net Weight

3750 kgs

8270 lbs

L × W × H

3.70 × 1.40 × 2.00 metres

146 × 55 × 80 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

INDUSTRIAL

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

37 litres/hr (9.80 usgph)

Rated Power @ BEP

121 kW (162 hp)

Model

Deutz TCD6.1L4

Emissions

EU Stage V

Max Power

180 kW (241 hp)

ELECTRIC MOTOR SPECS

Model WEG / ABB 415V 3 phase 50Hz
Standard IEC3
Rated Power

185 kW (248 hp)

Enclosure TEFC
Nominal Speed 1500 rpm
Frame

315

PUMP SPECIFICATION

Model

CRP80MX445

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Four Vane, CA6NM Enclosed Clear Liquids Impeller design providing long life & optimal efficiency

Size: 445 mm (17.51 ″)

Volute

Heavy duty Ductile Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

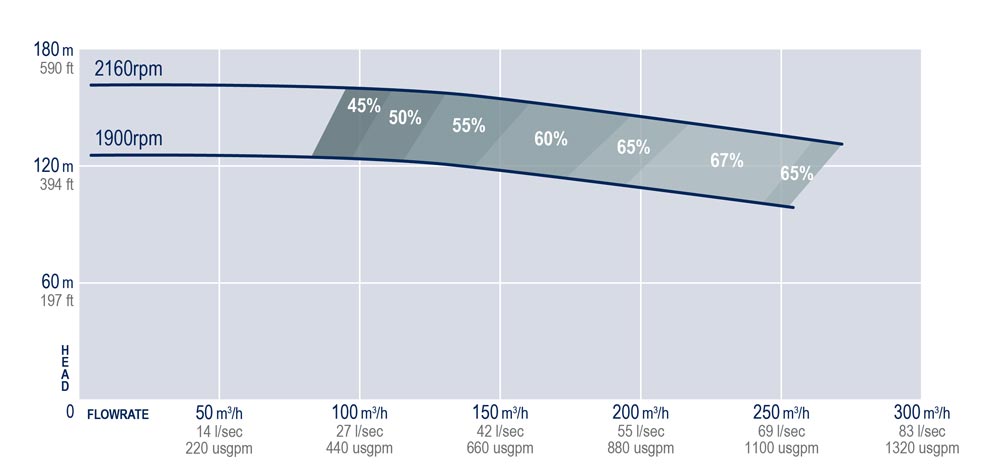

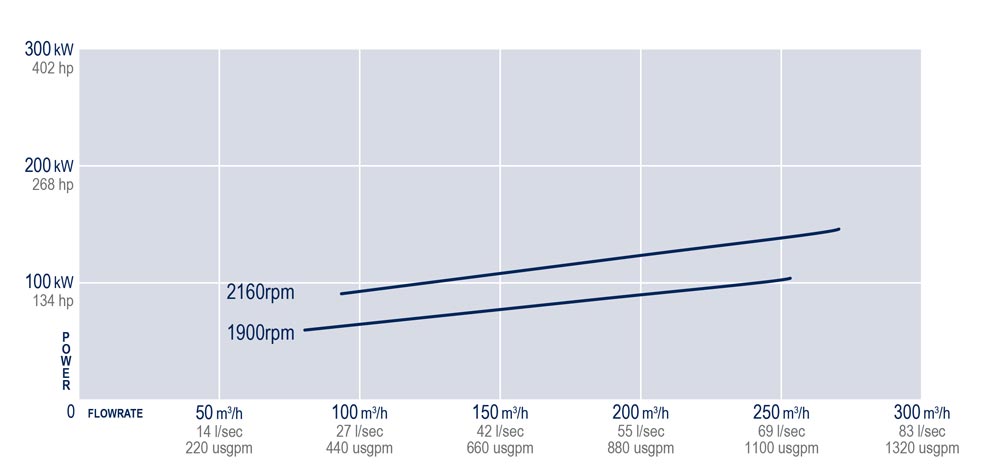

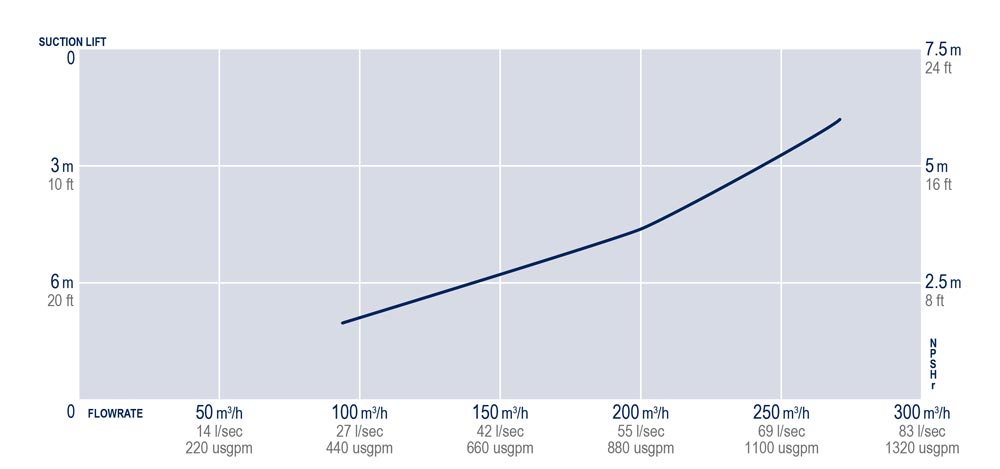

PERFORMANCE CURVE

9.10 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (270 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
