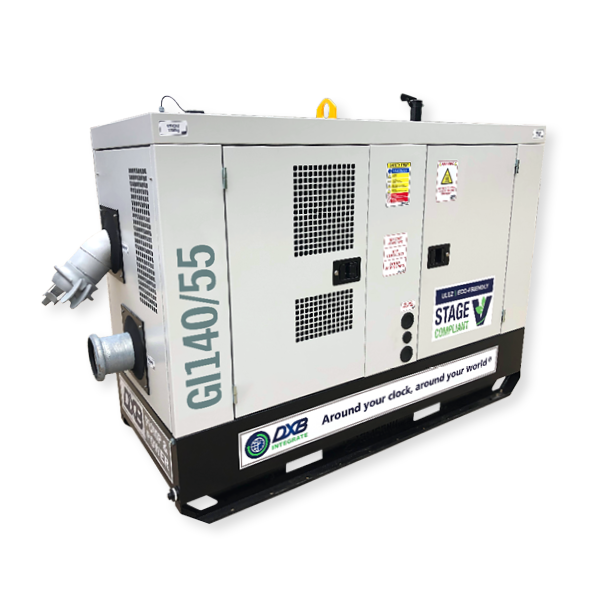

GI140/55

FLOW @ BEP

55 m³/hr
240 usgpm

HEAD @ BEP

140 metres
460 ‘

SPEED @ BEP

1600 rpm

EFFICIENCY @ BEP

79%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

125 mm

5 "

Discharge Size

80 mm

3 "

Solids Handling

13 mm (min)

0.50 " (min)

Max Flow

170 m³/hr

660 usgpm

Max Head

64 metres

210 '

Max Speed

1900 rpm

1900 rpm

Net Weight

2350 kgs

5180 lbs

L × W × H

2.85 × 1.20 × 2.00 metres

112 × 47 × 78 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

INDUSTRIAL

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

8 litres/hr (2.10 usgph)

Rated Power @ BEP

26 kW (45 hp)

Model

Deutz TD2.9

Emissions

EU Stage V

Max Power

55 kW (74 hp)

ELECTRIC MOTOR SPECS

Model WEG / ABB 415V 3 phase 50Hz
Standard IEC3
Rated Power

55 kW (74 hp)

Enclosure TEFC
Nominal Speed 1500 rpm
Frame

250

PUMP SPECIFICATION

Model

CRP80RB327

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Seven Vane Enclosed Clear Liquids Impeller design providing optimal efficiency

Size: 327 mm (12.87 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

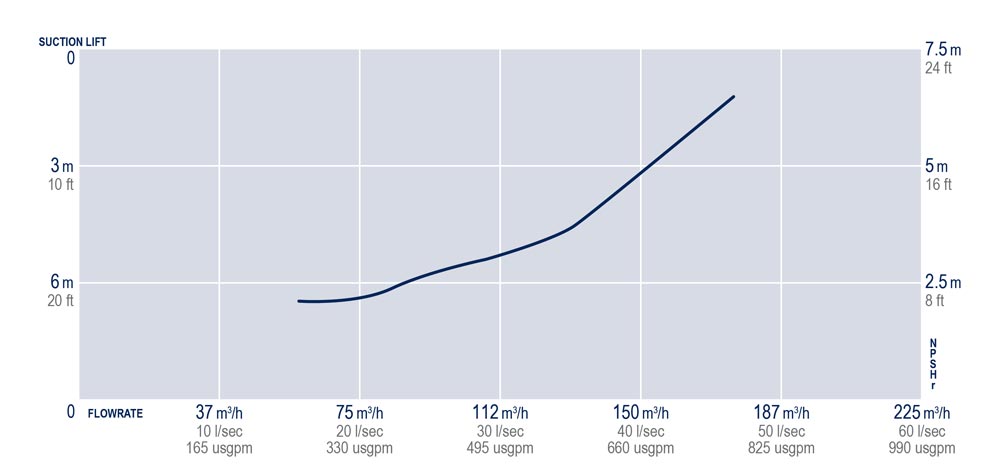

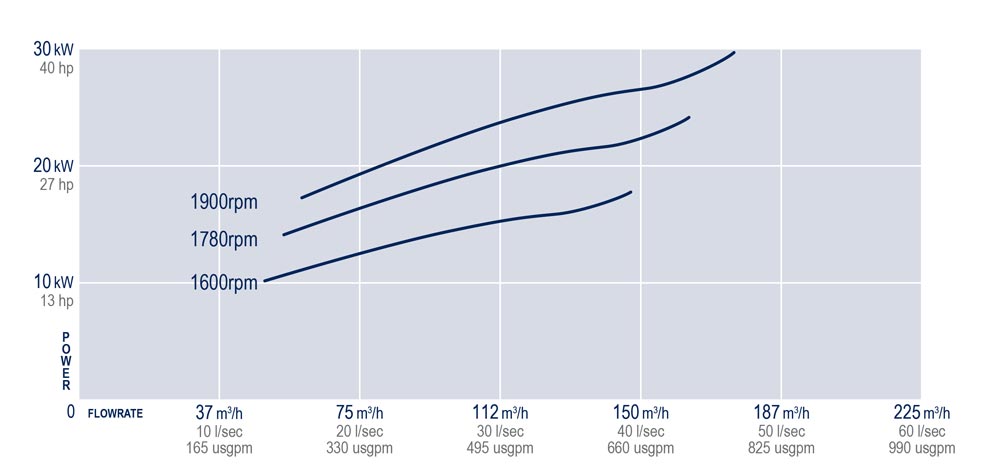

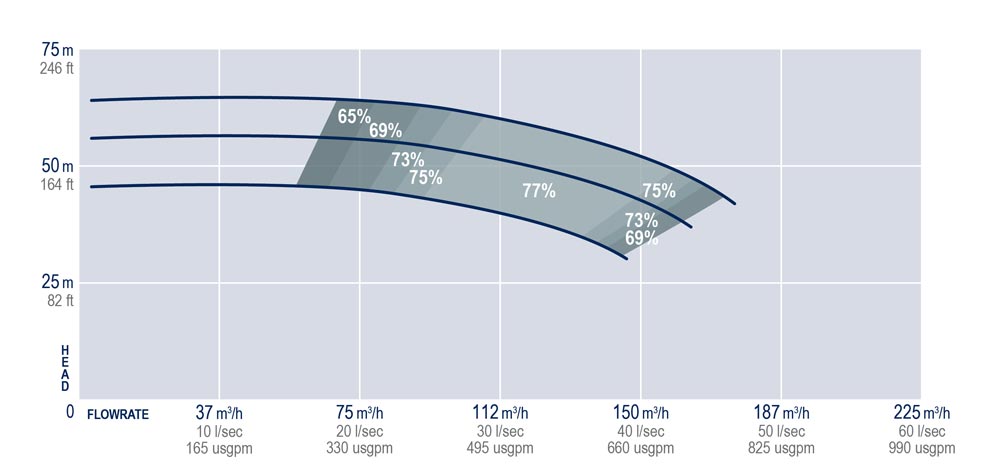

PERFORMANCE CURVE

14.25 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (170 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
