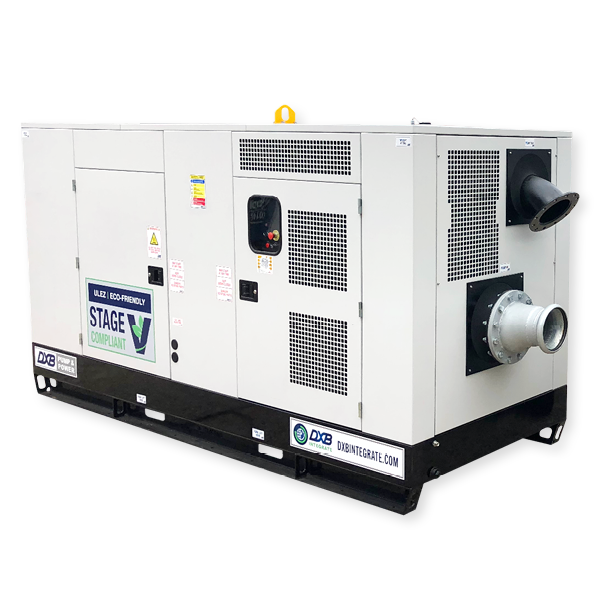

DE350/150

FLOW @ BEP

350 m³/hr
1540 usgpm

HEAD @ BEP

150 metres
490 ‘

SPEED @ BEP

2100 rpm

EFFICIENCY @ BEP

71%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

200 mm

8 "

Discharge Size

100 mm

4 "

Solids Handling

51 mm (min)

2 " (min)

Max Flow

545 m³/hr

2390 usgpm

Max Head

198 metres

650 '

Max Speed

2100 rpm

2100 rpm

Net Weight

7000 kgs

15430 lbs

L × W × H

4.10 × 2.10 × 2.20 metres

161 × 82 × 87 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

CONSTRUCTION & TUNNELLING

INDUSTRIAL

Mining, Quarry & Aggregates

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

60 litres/hr (15.85 usgph)

Rated Power @ BEP

255 kW (342 hp)

Model

Scania DC13

Emissions

EU Stage V

Max Power

300 kW (402 hp)

ELECTRIC MOTOR SPECS

Model

WEG / ABB 415V 3 phase 50Hz

Standard IEC3
Rated Power

315 kW (422 hp)

Enclosure TEFC
Nominal Speed

1500 rpm

Frame

355

PUMP SPECIFICATION

Model

CRP100NHTB495

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Two Vane, High Head Enclosed Solids Handling Impeller design for large spherical solids pass through whilst providing optimal efficiency

Size: 495 mm (19.50 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

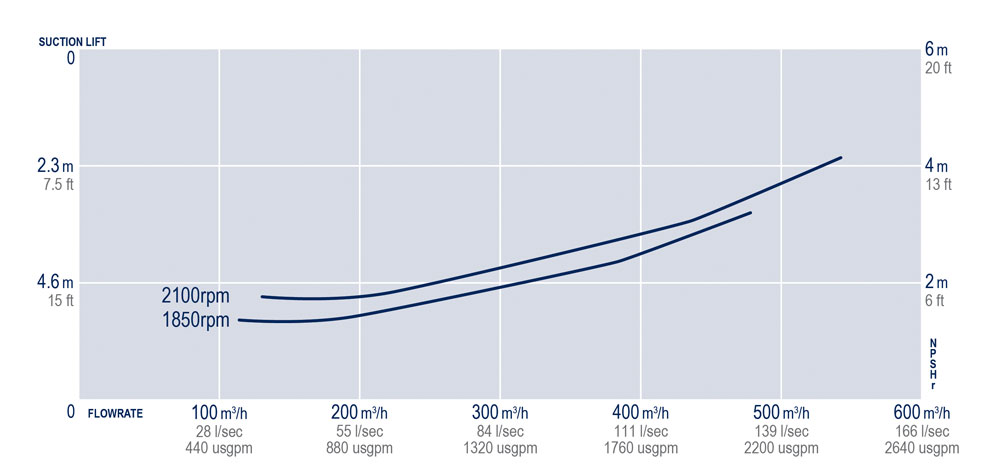

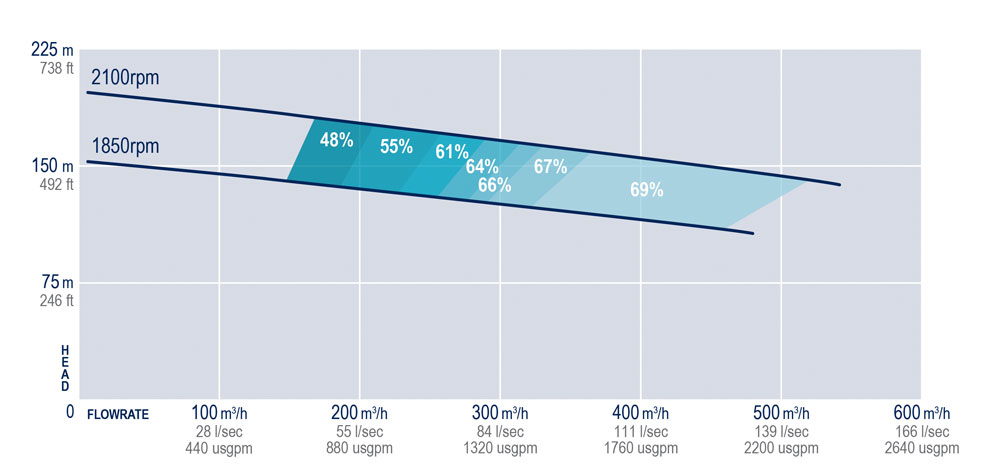

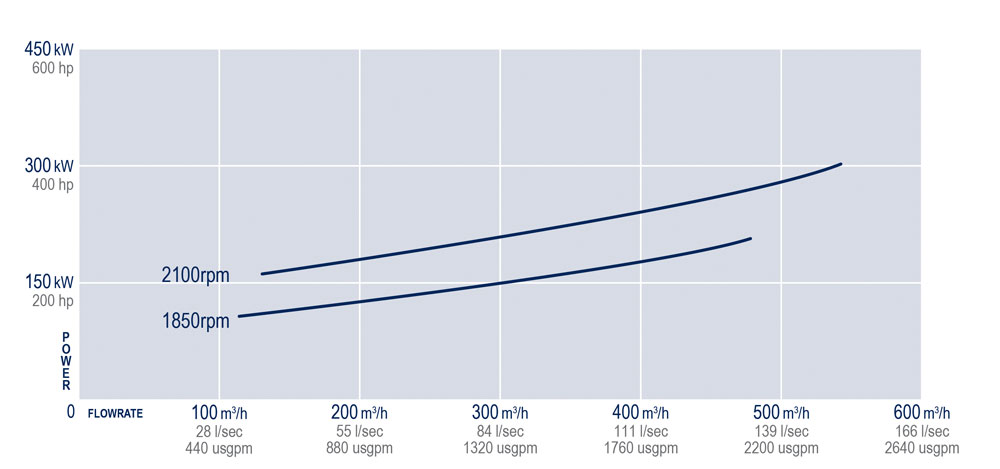

PERFORMANCE CURVE

4.60 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (545 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
