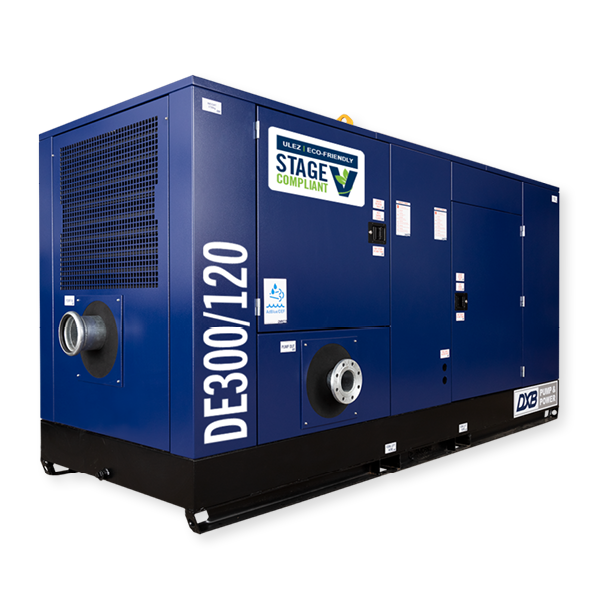

DE300/120

FLOW @ BEP

385 m³/hr
1700 usgpm

HEAD @ BEP

115 metres
385 ‘

SPEED @ BEP

1850 rpm

EFFICIENCY @ BEP

71%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

200 mm

8 "

Discharge Size

150 mm

6 "

Solids Handling

51 mm (min)

2 " (min)

Max Flow

480 m³/hr

2110 usgpm

Max Head

153 metres

502 '

Max Speed

1850 rpm

1850 rpm

Net Weight

4100 kgs

9040 lbs

L × W × H

4.25 × 1.60 × 2.20 metres

167 × 63 × 87 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

CONSTRUCTION & TUNNELLING

INDUSTRIAL

Mining, Quarry & Aggregates

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

52 litres/hr (13.75 usgph)

Rated Power @ BEP

175 kW (235 hp)

Model

Deutz TCD7.8L6

Emissions

EU Stage V

Max Power

260 kW (349 hp)

ELECTRIC MOTOR SPECS

Model

WEG / ABB 415V 3 phase 50Hz

Standard IEC3
Rated Power

250 kW (355 hp)

Enclosure TEFC
Nominal Speed

1500 rpm

Frame

315

PUMP SPECIFICATION

Model

CRP100NHTB495

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Two Vane, High Head Enclosed Solids Handling Impeller design for large spherical solids pass through whilst providing optimal efficiency

Size: 495 mm (19.50 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

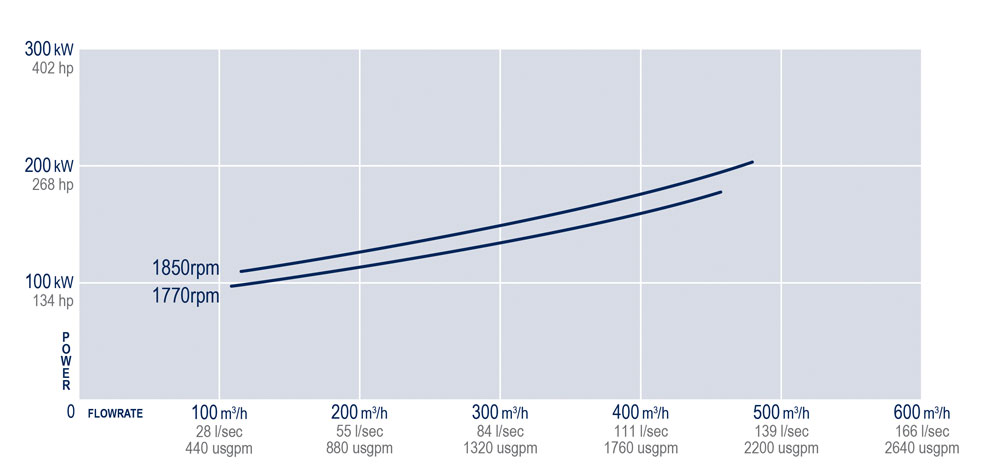

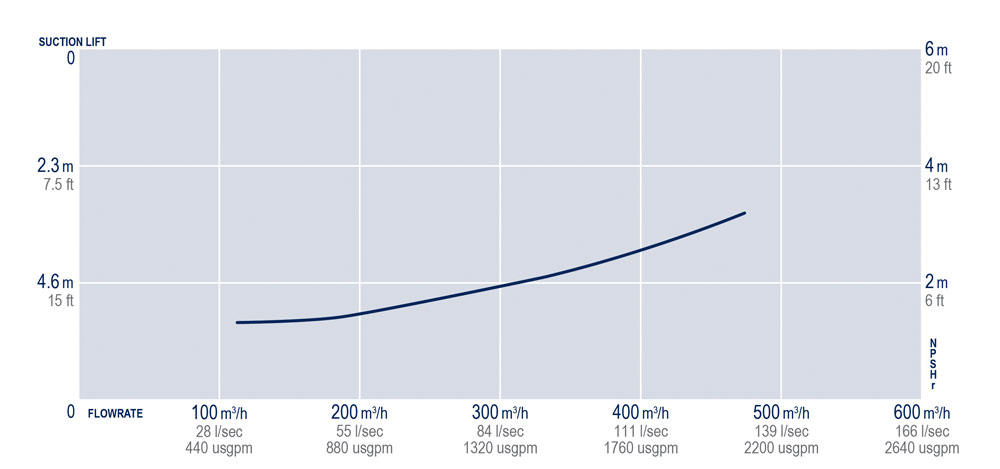

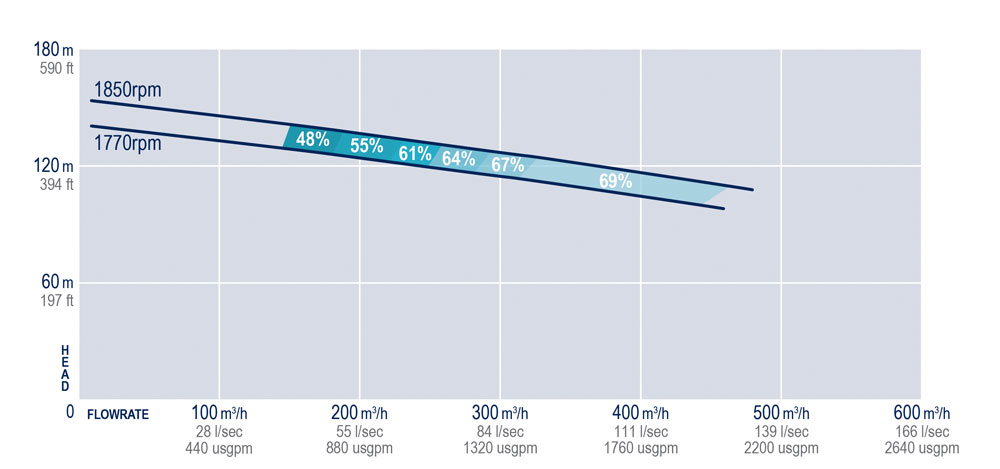

PERFORMANCE CURVE

5.20 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (480 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
