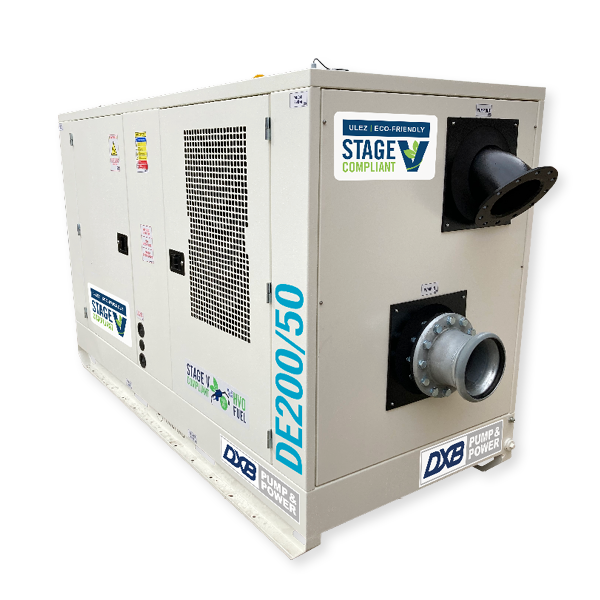

DE200/50

FLOW @ BEP

200 m³/hr
880 usgpm

HEAD @ BEP

50 metres
164 ‘

SPEED @ BEP

1600 rpm

EFFICIENCY @ BEP

75%

FEATURES & BENEFITS

AT A GLANCE

Suction Size

100 mm

4 "

Discharge Size

100 mm

4 "

Solids Handling

76 mm (min)

3 " (min)

Max Flow

280 m³/hr

1240 usgpm

Max Head

63 metres

207 '

Max Speed

1600 rpm

1600 rpm

Net Weight

2350 kgs

5180 lbs

L × W × H

2.85 × 1.20 × 2.00 metres

112 × 47 × 78 "

BEST SUITED FOR THESE MARKETS:

OIL & GAS

CONSTRUCTION & TUNNELLING

INDUSTRIAL

Mining, Quarry & Aggregates

WATER MANAGEMENT

PUMP
HIRE

CHOOSE DIESEL OR ELECTRIC

DIESEL ENGINE SPECS

Fuel Tank Size 450 ltrs (119 usg)
Fuel Burn/hr @ BEP

11 litres/hr (2.90 usgph)

Rated Power @ BEP

36 kW (49 hp)

Model

Deutz TD2.9

Emissions

EU Stage V

Max Power

55 kW (74 hp)

ELECTRIC MOTOR SPECS

Model WEG / ABB 415V 3 phase 50Hz
Standard IEC3
Rated Power

55 kW (74 hp)

Enclosure TEFC
Nominal Speed 1500 rpm
Frame

250

PUMP SPECIFICATION

Model

CRP150T286

Priming System

Type: Cornell liquid tolerant diaphragm vacuum pump

Air Removal Capability: 50 cfm

Priming Chamber: Cornell optimised priming chamber design and valve linkage for maximum reliability and zero carryover

Discharge Check Valve: Patented Cornell Non return valve with optional 90 degree discharge and heavy duty flapper

Run Dry: Indefinite capability

Impeller

Type: Two Vane Enclosed Solids Handling Impeller design for large spherical solids pass through whilst providing optimal efficiency

Size: 356 mm (14.02 ″)

Volute

Heavy duty GG30 Gray Iron with 125# flanges

Mechanical Seal

Tungsten Carbide v Silicon Carbide

Bearing & Shaft

Heavy-duty bearing housing with dual angular contact bearings on drive end and heavy duty shaft

PERFORMANCE CURVE

8.87 HOURS
To empty an Olympic Swimming Pool (2,500,000 litres) at Max Flow (280 m3/hr)

DOWNLOAD THE DATASHEET...

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

ALL DATA IS FOR GUIDANCE PURPOSES ONLY
